Ethernet Router Connector RJ45 Modular Jack 10 / 100 Through Hole Mounting Type

Product Categories

Shenzhen GLGNET Electronics Co., LTD

Contact Now

Name: Ethernet Router Connector RJ45 Modular Jack 10 100 Through Hole Mounting Type
Brand: GLGNET
Price: 1 USD

Brand Name : GLGNET

Model Number : PRU1S411A-GG-1

Certification : ISO 9001, ISO 14001, UL, RoHS, IECQ QC080000,

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20KK ports /month

Delivery Time : 10 work day

Packaging Details : Tray, Tube, Reel, Carton

Shielding Shell : 0.2mm Brass

Housing Material : Black PA46

Contact Terminal : 30U" AU Plating

LED Color : Green/Green

Operating Temp. : 0 to 70 ℃

Mounting Type : Through Hole

Contact Now

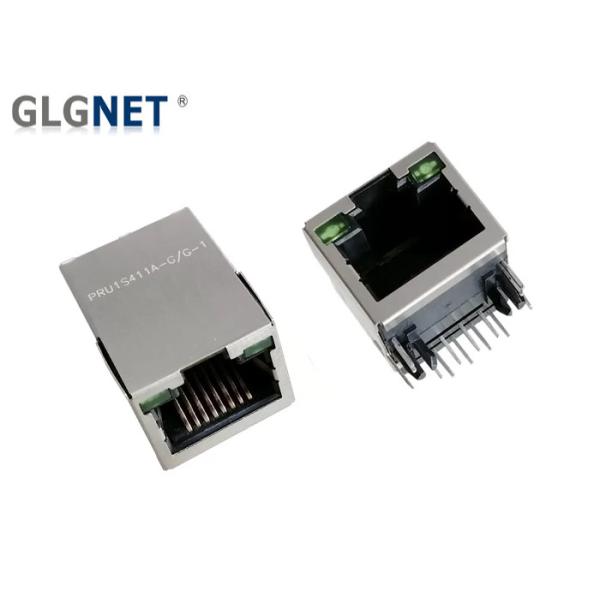

Single Port 10/100 Magnetic RJ45 Connector with LED without EMI Spring for Ethernet Router

1. GLGNET Single Port RJ45 Modular Jack (PRU1S411A-GG-1) Attributes:

Part Number	PRU1S411A-GG-1	Brand	GLGNET
Place of Origin	Guangdong of China	Certification	CE /UL/FCC/Reach/RoHS
Product Type	Magnetic RJ45 Connector	Connector Style	Modualr Jack
Latch Style	Without Latch Spring	Tab	Up
Filter	With 10/100 Base-T Integrated Transformer	LED Option	With Green/Green LED
Shielded	Yes	Applies To	Routers, Hubs, VOIP etc.
Performance Speed	10 / 100 BASE-T	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single	Number of Positions	8
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	0.2mm Brass	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 1.8u"/3u"/6u"/15u"/30u"/50u"	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole	Board Lock	Yes
Housing Material	PA46	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

2. GLGNET Single Port RJ45 Modular Jack (PRU1S411A-GG-1) Structure:

3. GLGNET Single Port RJ45 Modular Jack (PRU1S411A-GG-1) Electrical Specification:

Parameter	Specification
Brand	GLGNET
Operating Temperature	0 to 70 ℃
Turns Ratio	1:1±3%
Open Circuit Inductance (ocl)	350uH MIN@ 100KHz/100mV with 8mA DC Bias
Insertion Loss (IL)	-1.0dB MAX @ 0.3MHz – 100MHZ;
Return Loss (RL) Z out = 100 OHM	-18dB MIN @ 1MHz – 30MHZ; -13dB MIN @ 30MHz – 60MHZ; -10dB MIN @ 60MHz – 100MHZ;
Crosstalk Adjacent Channels	-30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR)	-30dB MIN @ 1MHz – 100MHZ
HI - POT	2250 VDC @ 60 Seconds

4. GLGNET Single Port RJ45 Modular Jack (PRU1S411A-GG-1) Materials

Housing: Class Filled PA46 UL94V-0 (ROHS)
Sheliding: 0.2mm thickness With Brass (RoHS)
Contact: Phosphor Bronze, 50-100 Microinches Min Nickel Plating overall, 30 Microinches Gold Plating on Mating Interface
The Part is recommended for wave soldering process, Soldering process is 260 ℃ Max 10 Secondes Max
Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
All the Raw materials meet RoHS
Operating Temperature: 0 ℃ to +70 ℃, Storage Temperature : -40 to 85 ℃

5. GLGNET Single Port RJ45 Modular Jack (PRU1S411A-GG-1) Applications:

This is not a definitive list of applications for this product. It represents some of the more common uses.

Ethernet Router Connector RJ45 Modular Jack 10 / 100 Through Hole Mounting Type

6. GLGNET Advantage

20 years experiences in Magnetic RJ45 Connectors
1500 Employees
58 R&D Engineers.
22000 square meters Factory
We support Costom Service;
20KK Prots / Month Capacity
Our products are compliant with RoHS, REACH and UL certification
Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
We have our Own Metal Tooling and Plastic Tooling Center
Has 3 LS-WEDM Machines
Has 12 WEDM Machines and 8 CNC Machines
Has 20 Grinding Machines and 12 Electrical Discharge Machines
Has 30 Stamping Machines
Has 55 Plastic Injection Machines
Has Automatic Assembly Workshops

7. GLGNET Single Port RJ45 Modular Jack (PRU1S411A-GG-1) Mechnical Drawing
